PALADIO - The versatile linear lighting system

The PALADIO lighting system, with its modular concept, allows for comprehensive planning flexibility in the design of cross-room lighting solutions. The consistently minimalist design and the possibility of combining a wide variety of luminaire types allow for a wide range of lighting solutions. Whether as a PALADIO individual or system luminaire, with prisms or lens reflectors, the choice is yours. In addition, the PALADIO TRACK variant offers the option of flexibly positioning light elements and selected luminaires from the SATTLER portfolio via a power rail. A wide range of recessed, surface-mounted and pendant mounting options allow us to respond to a wide range of on-site conditions.

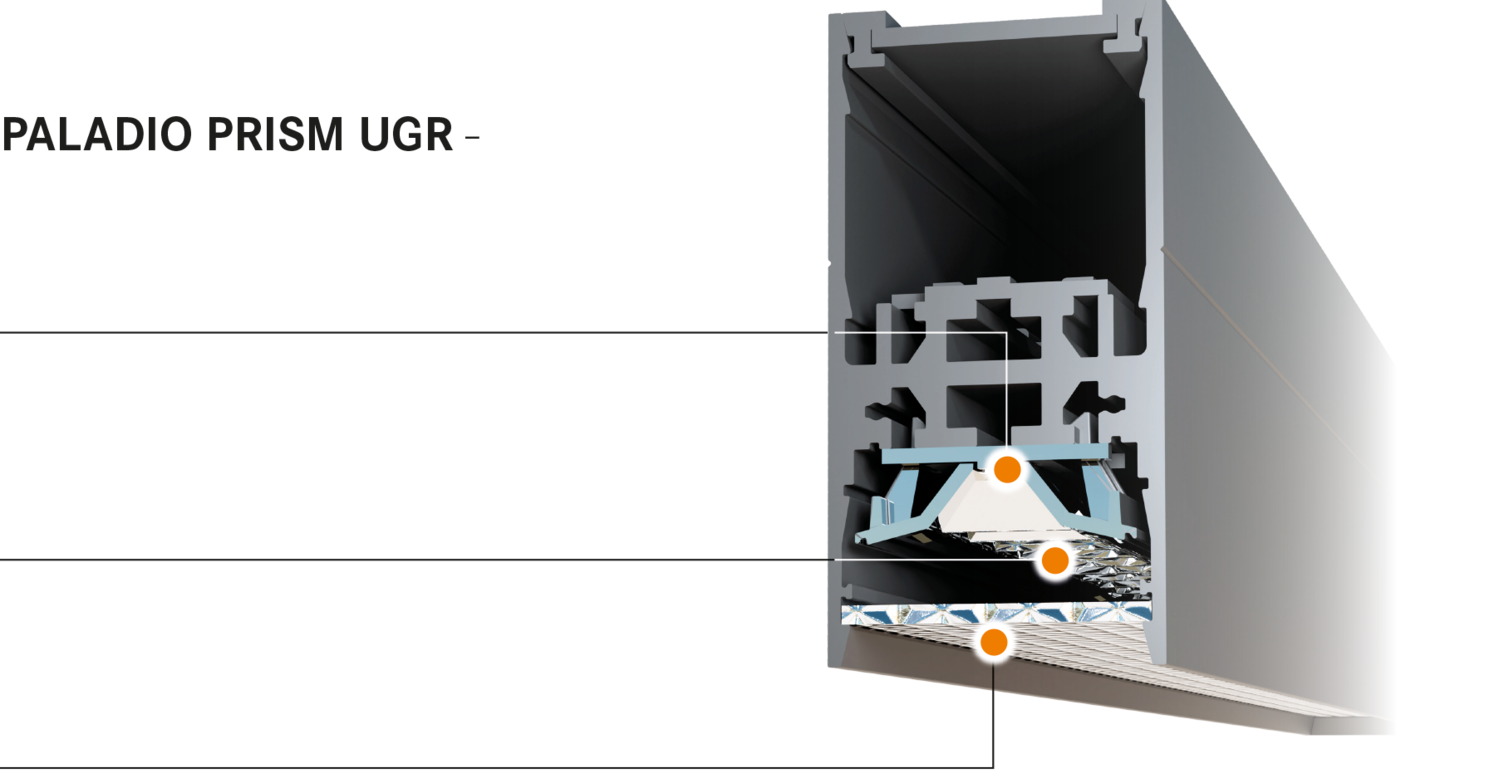

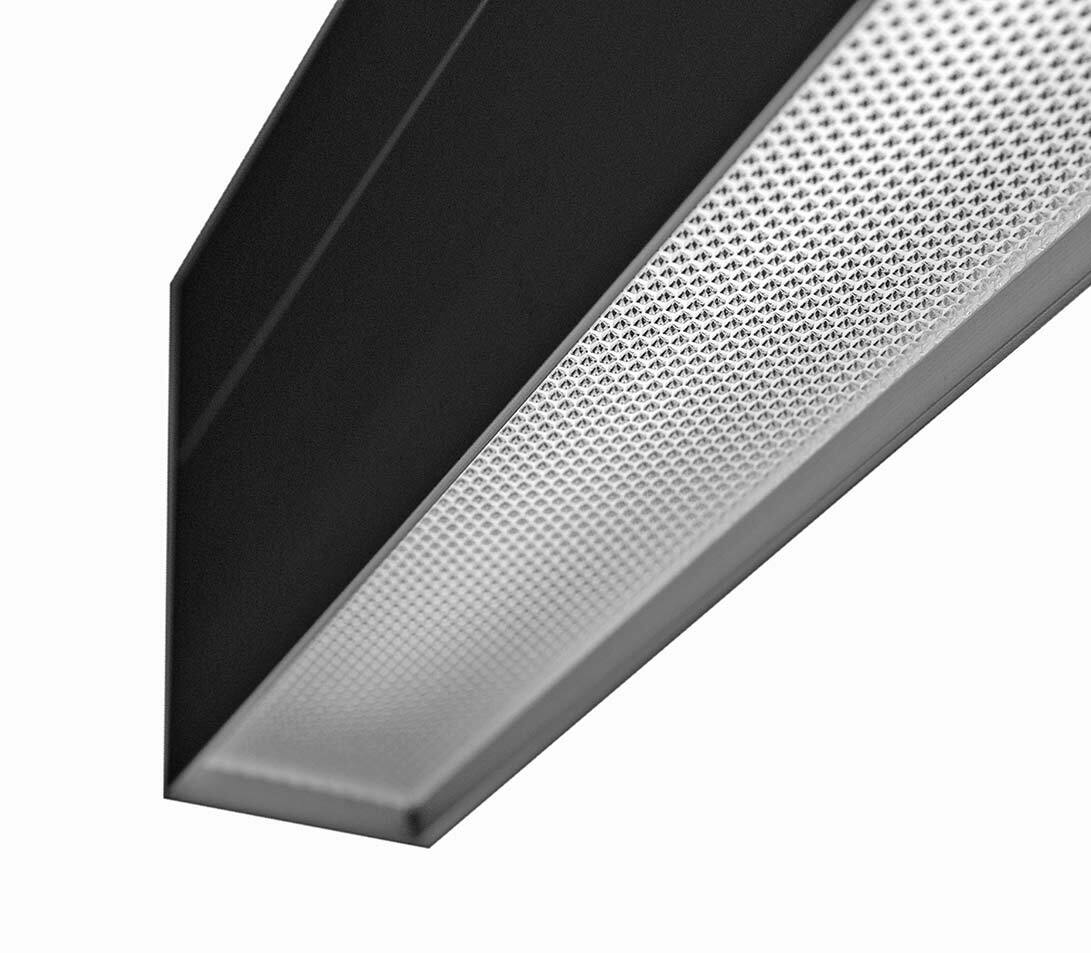

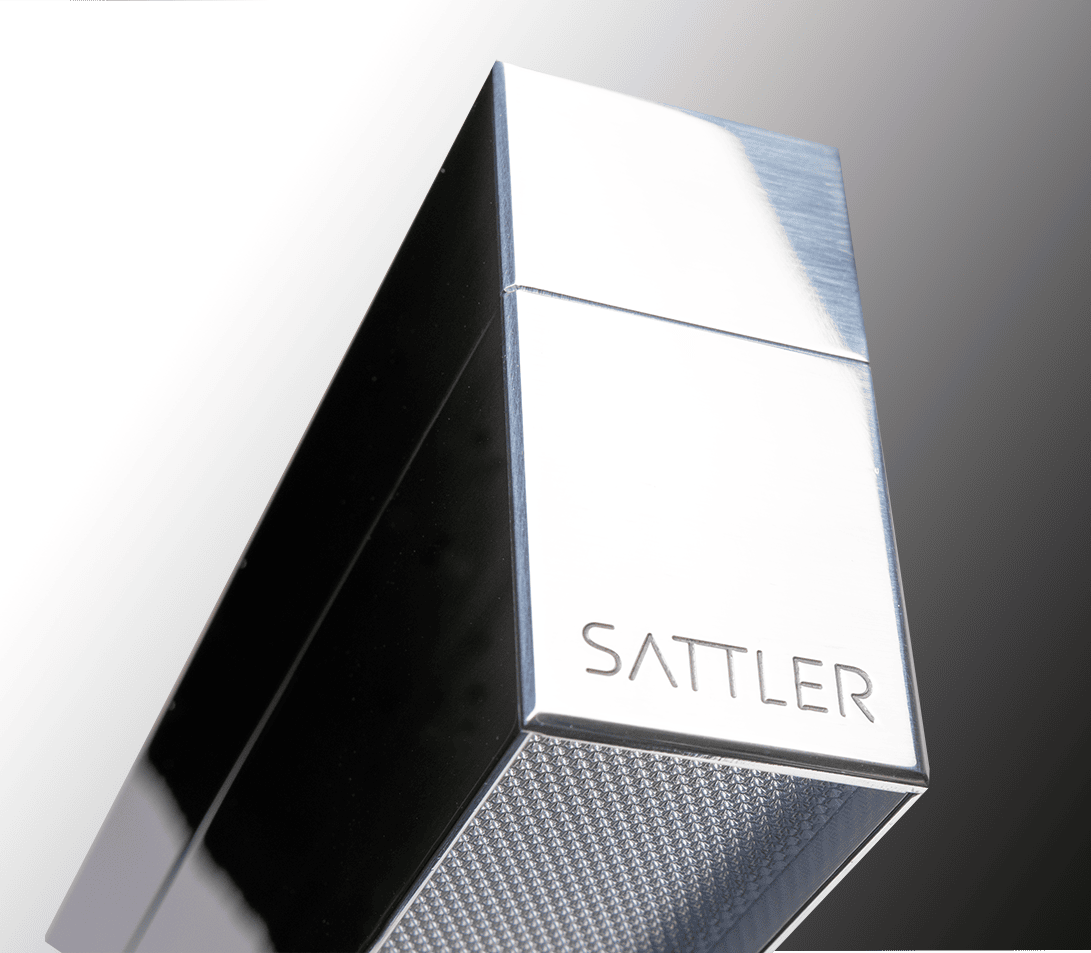

The micro-prismatic diffuser of the PALADIO PRISM provides glare control with a high light output ratio. The diffuser's multi-layer structure ensures a reduction in glare and a homogeneous light pattern with precise light distribution.

The prismatic surface structure ensures that the light is emitted and distributed at a precisely defined angle from the luminaire, thus preventing unwanted glare and reflections.

.

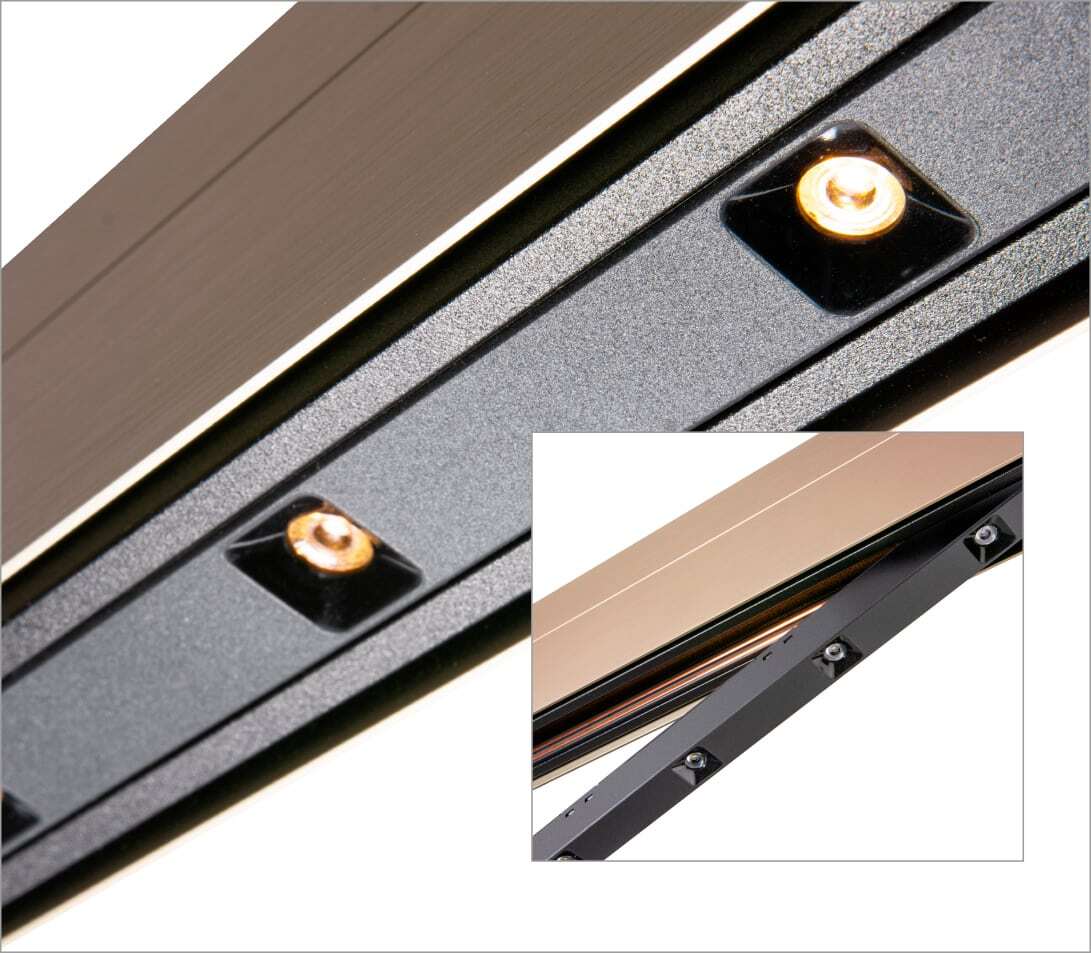

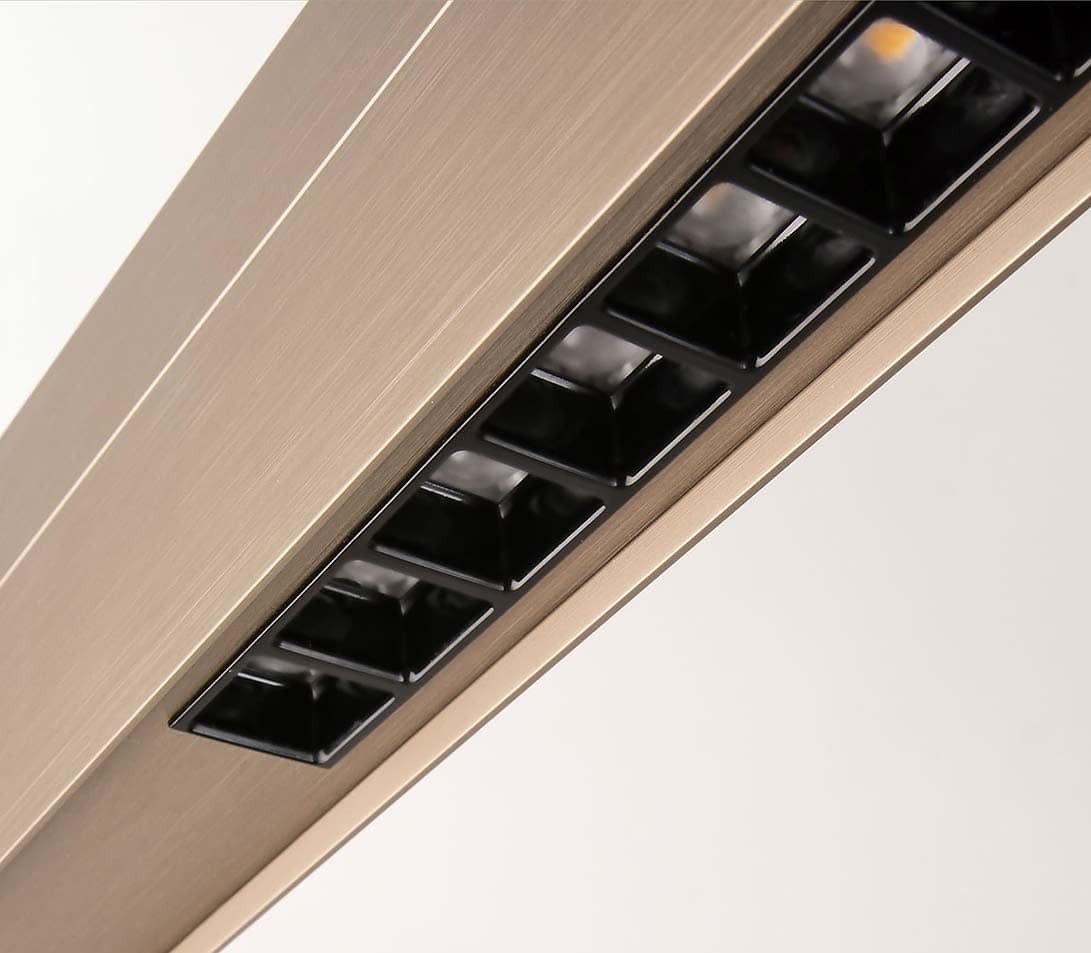

Luminaires in the PALADIO LENS series are equipped with highly efficient mini-lens reflectors. This innovative system combines the advantages of lenses and reflectors. The recessed lens is responsible for the distribution of luminous flux, while the reflector reliably reduces any lateral glare.

Thanks to these extremely low glare values (UGR<19), the luminaire complies with the EN 12464-1 standard. The lenses have a beam angle of 60° as standard, with an 80° option.

Thanks to the integrated 48V DALI power rail, PALADIO TRACK offers a high degree of flexibility and design freedom in planning. Specially developed linear lighting elements and selected luminaires from the SATTLER portfolio can be easily combined to create high-performance lighting systems that meet even the most exacting design requirements.

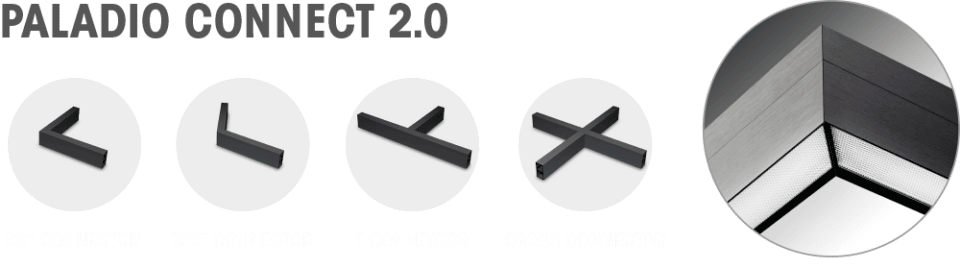

PALADIO CONNECT connecting elements make it easy to realise even the most complex structures.

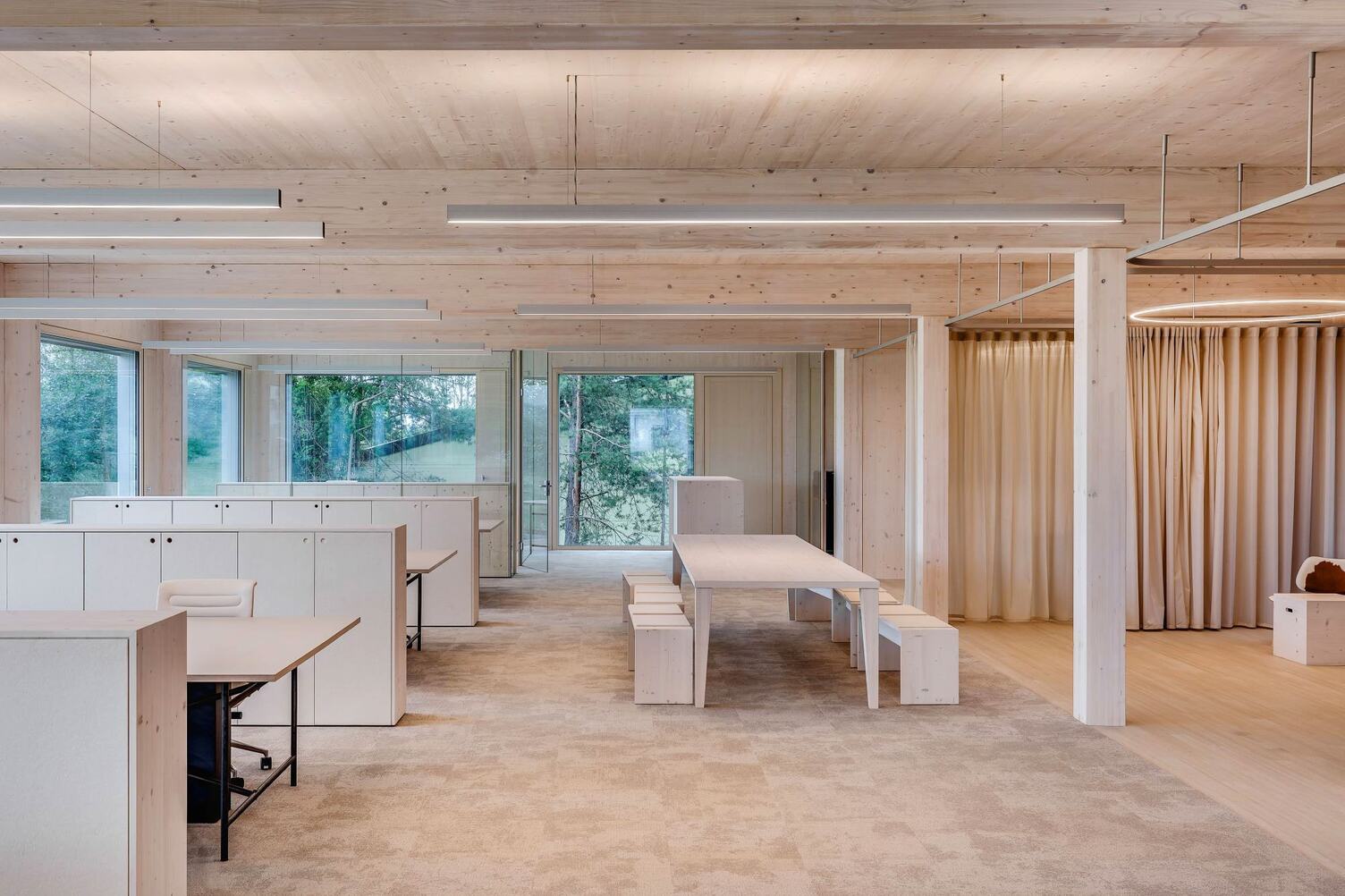

PALADIO is the contemporary interpretation of a classic, technical linear luminaire. With a slimline profile of 35 mm or 54 mm, the linear PALADIO series impresses with a high-quality aluminium body that feels elegant to the touch. It can be optionally equipped with a micro-prismatic diffuser „PRISM“, a mini-lens reflector "LENS" or a "TRACK" rail. 7 different lengths and 5 mounting options open up a wide range of applications.

Equipped with the same features as the individual PALADIO luminaires, PALADIO system luminaires enable a row arrangement, regardless of the selected mounting variant, in which even the different types PRISM, LENS and TRACK can be combined with each other. The use of optional PALADIO CONNECT connectors allows for the creation of flexible, complex, linear light structures that span rooms.

.

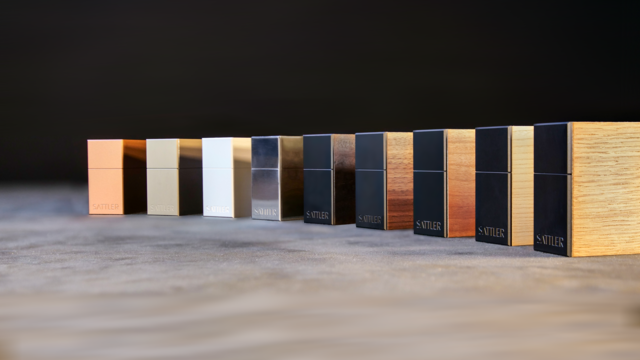

PALADIO – premium surfaces

Whether with real wood veneer, anodised and brushed or hand-polished aluminium, the selected surface structure gives the PALADIO series an exclusive touch. Anodising creates a hard, wear-resistant layer that optimally protects the underlying aluminium housing of the luminaire. Other luminaires in the SATTLER portfolio are available with the same finish and can therefore be optimally combined with the PALADIO series.

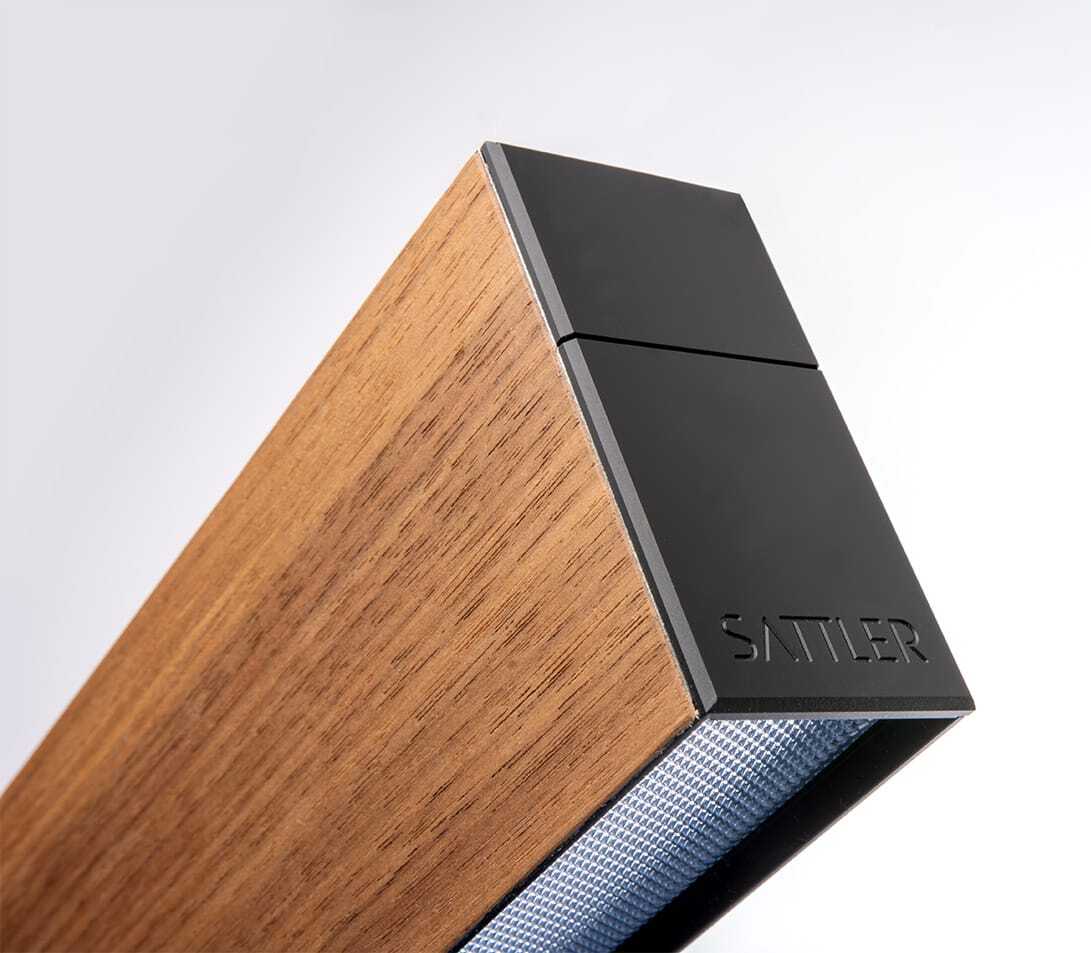

Real wood veneer

Special surfaces

Anodised surfaces

PALADIO – Glare-free UGR < 19

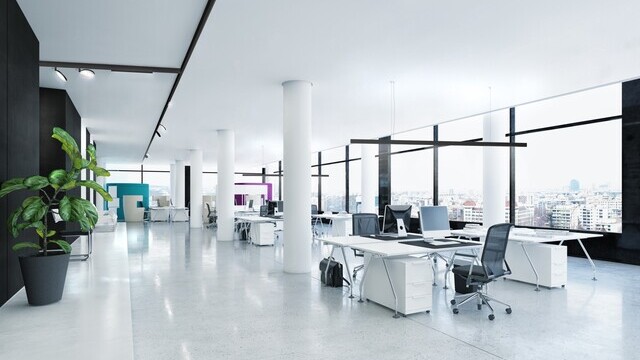

The PALADIO series impresses with its outstanding technical values. It is glare-free with a UGR value of UGR<19 (LENS and PRISM 54 UGR version) and is therefore suitable for office workplaces in accordance with the Workplace Directive. A CRI > 90 is a matter of course for us. Thanks to the very high-quality LEDs and power supply units used, we can guarantee a service life of L 80 | B10 | 72,000 hours.

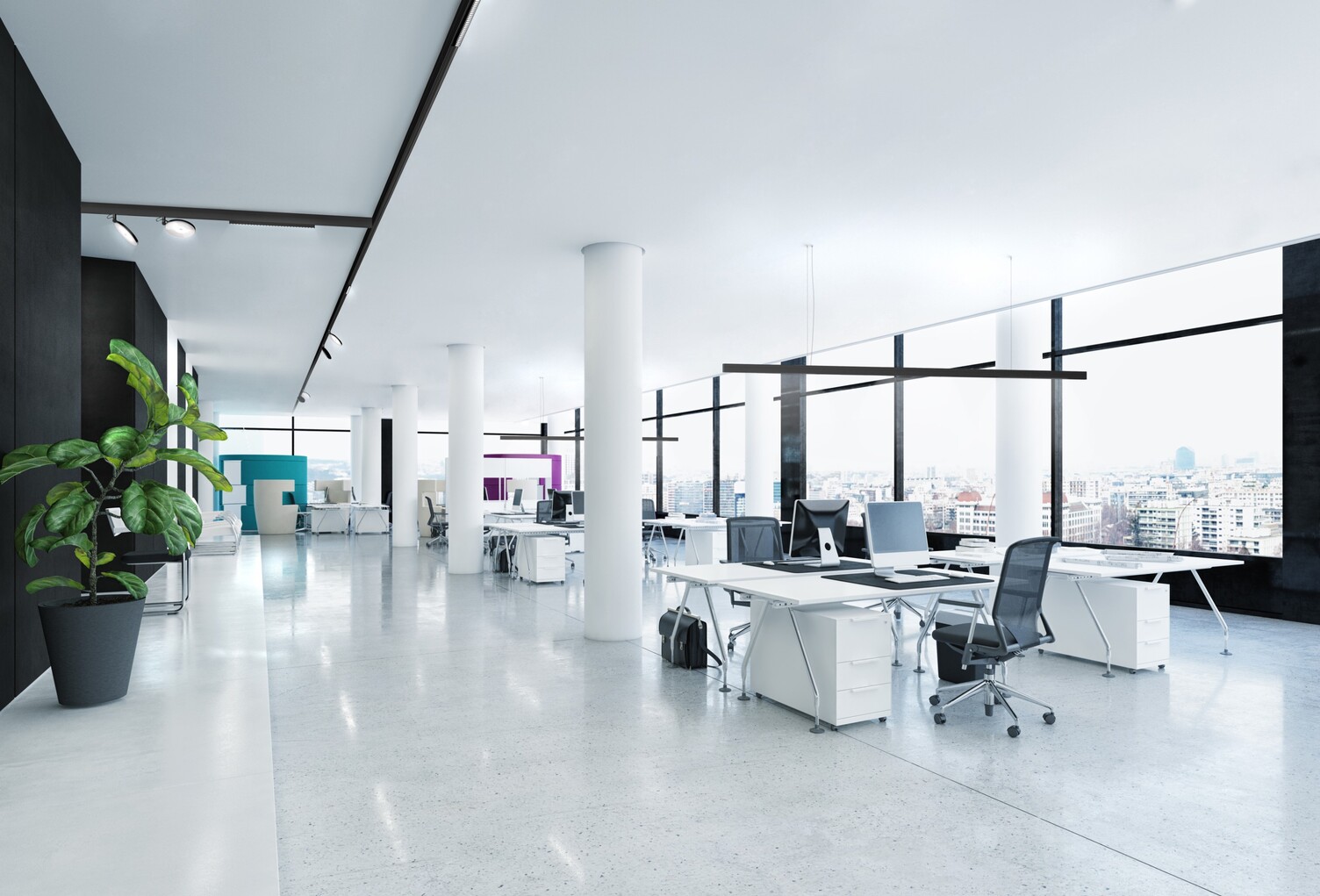

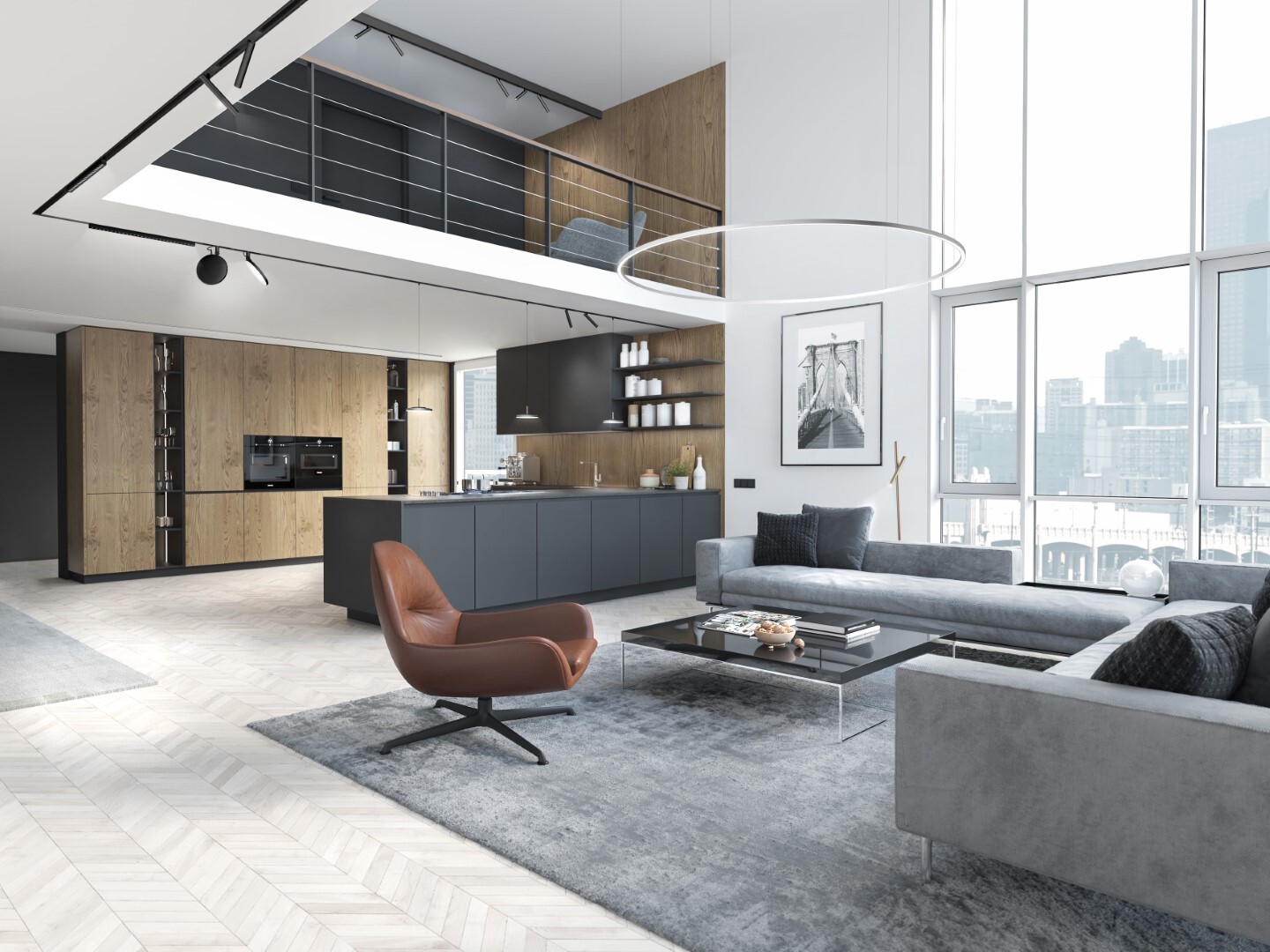

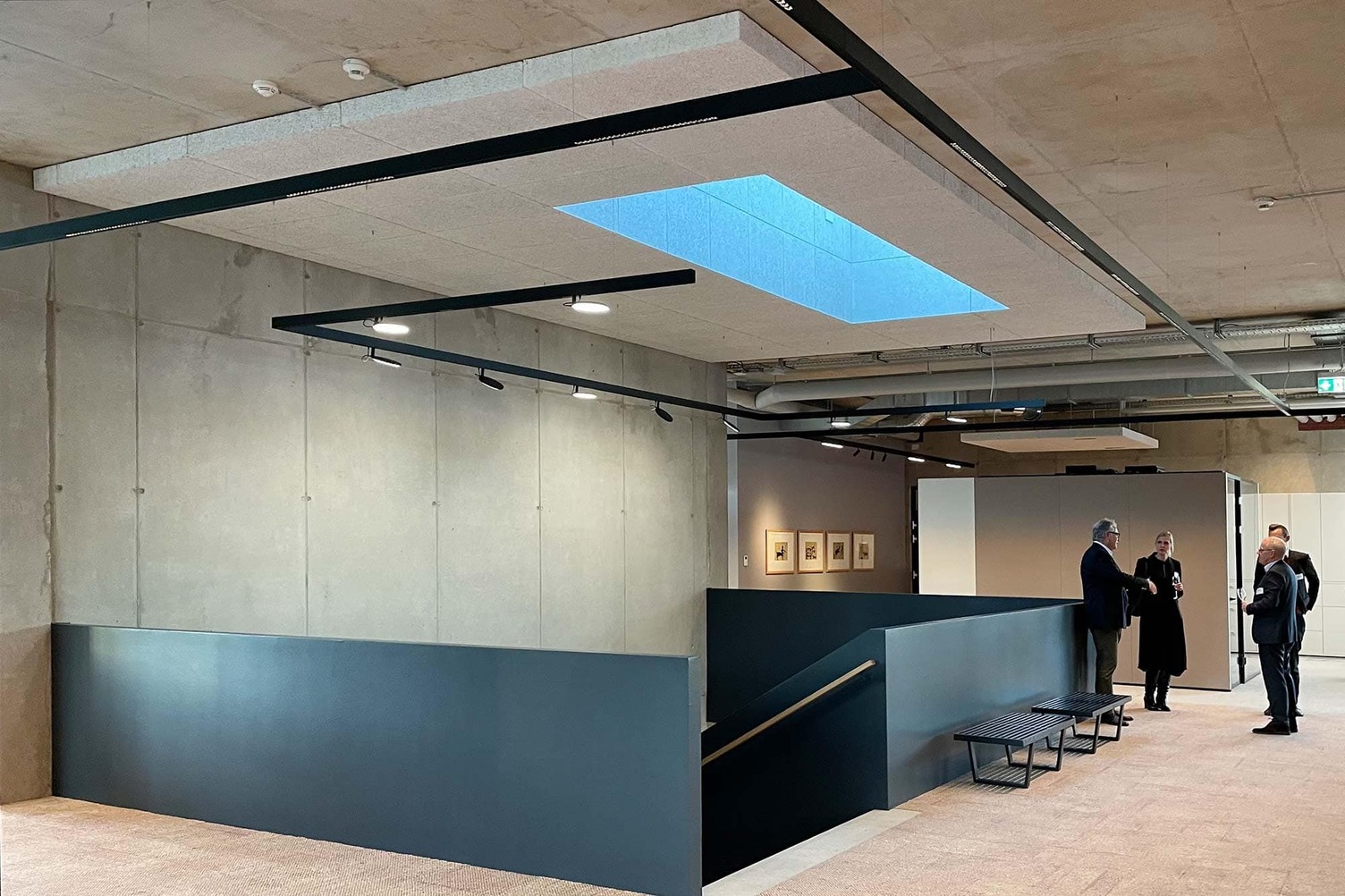

The PALADIO TRACK with the 48V conductor rail system offers free design freedom

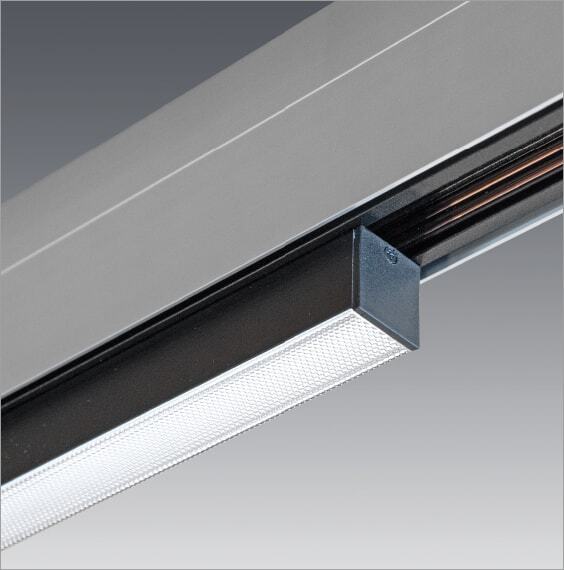

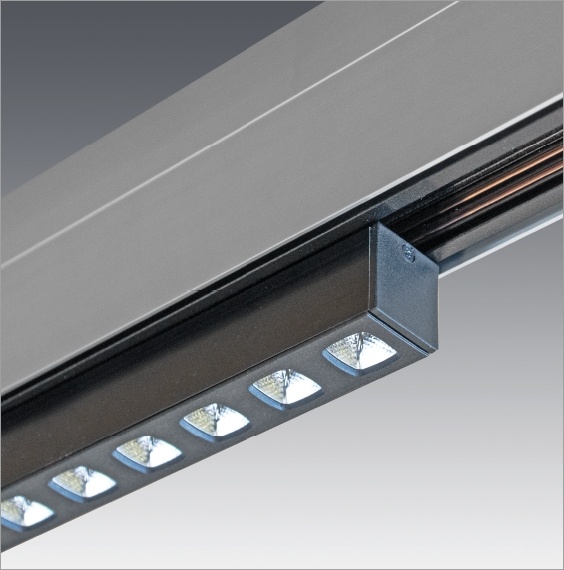

Linear lighting elements

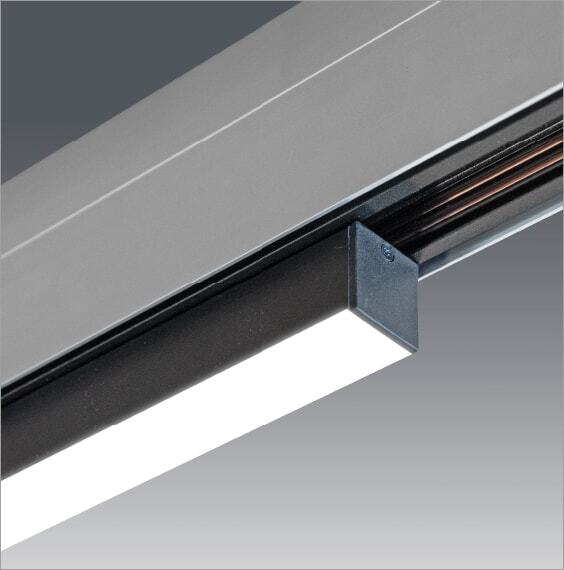

PALADIO linear lighting elements in black for PALADIO TRACK (track DC 48V DALI, black) - Using the integrated magnetic adapter, lighting elements with reflector, 240° swivelling reflector, microprism or opal diffuser can be positioned as required on the 48V track of the PALADIO profile. The track can be dimmed via DALI or, optionally, the individual luminaire can also be dimmed via CASAMBI.

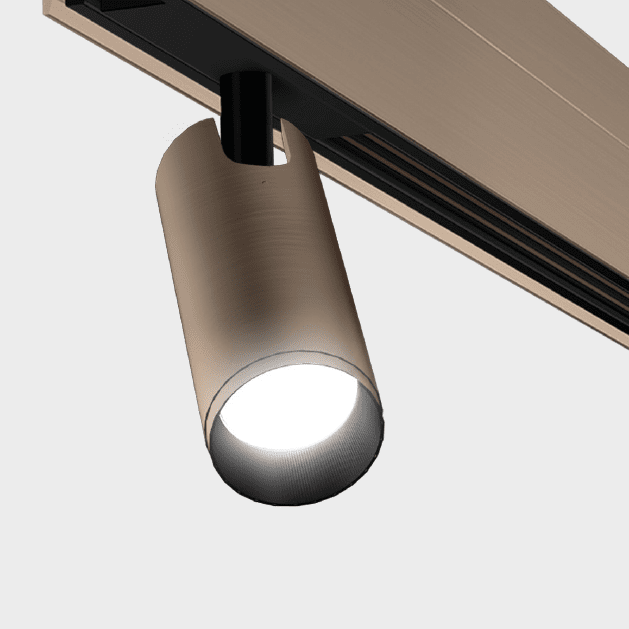

Decorative spotlights and pendant lights

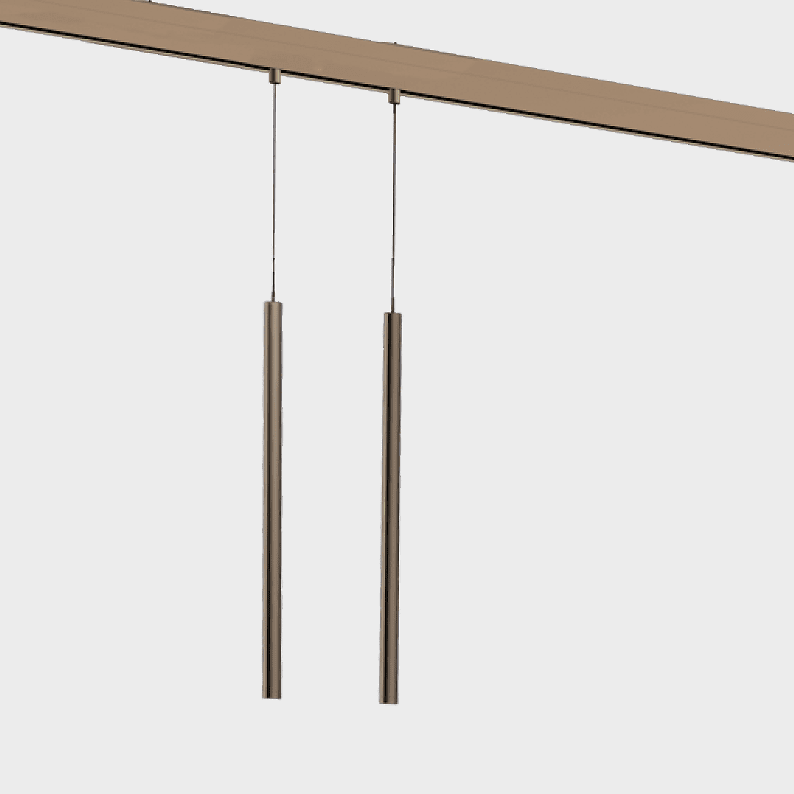

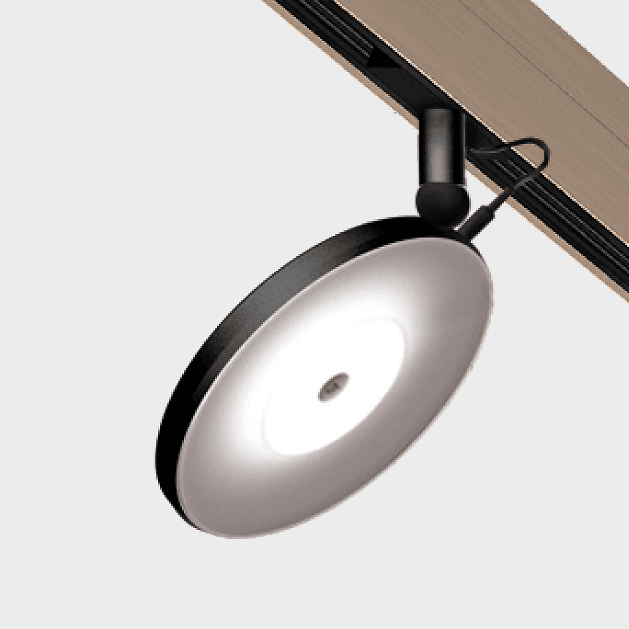

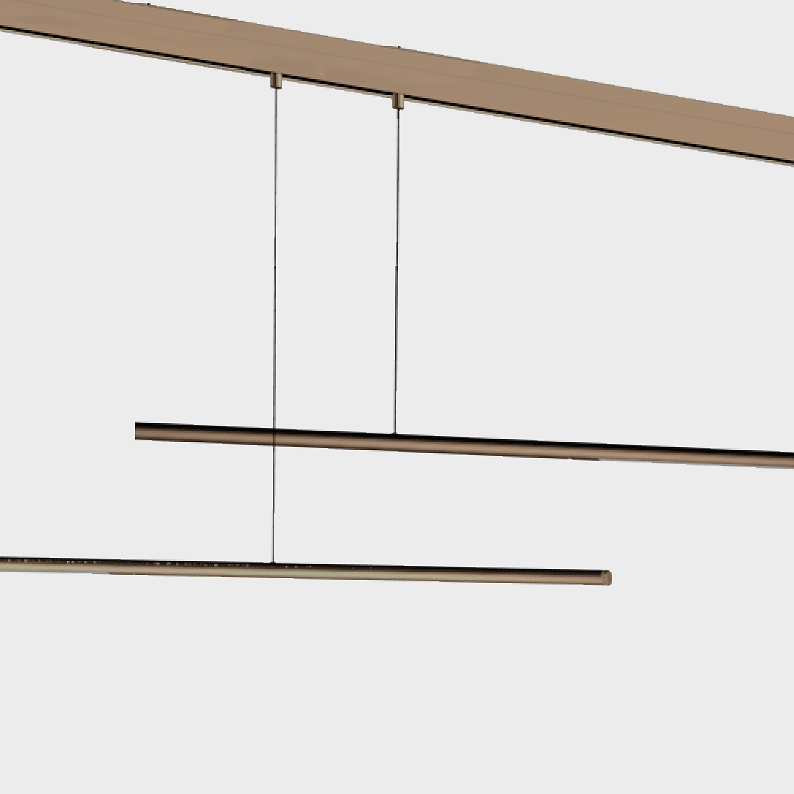

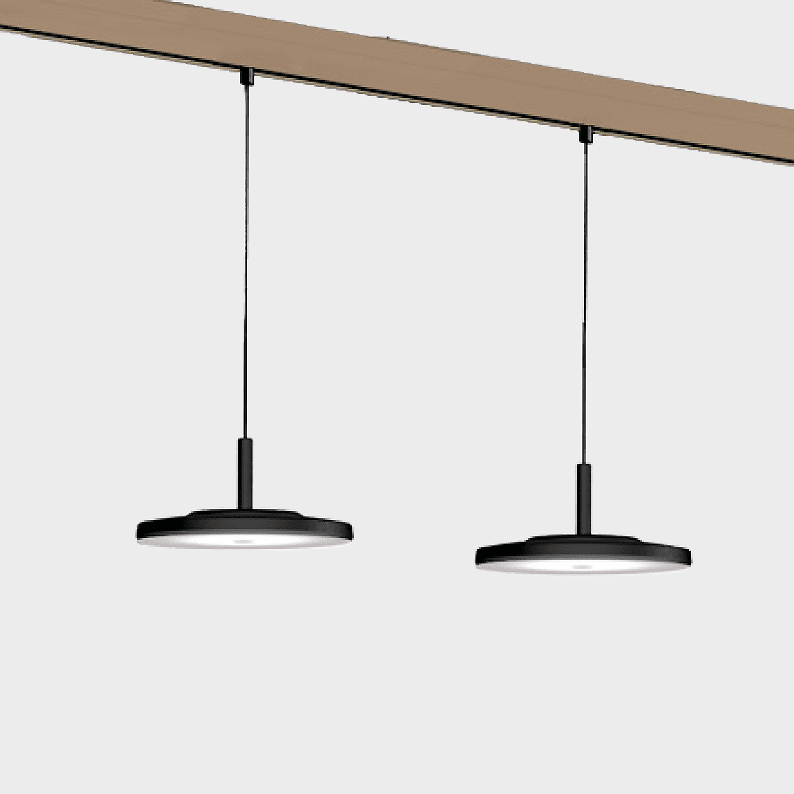

for PALADIO TRACK (DC 48V track) using an adapter. Surface-mounted luminaires from the SATTLER portfolio, such as FINO SPOT 2, FINO PENDANT, PALITO, EVOLUTION SPOT, AVVENI SPOT and AVVENI PENDANT 1, can be freely positioned on the PALADIO TRACK luminaire profile using the magnetic adapter.

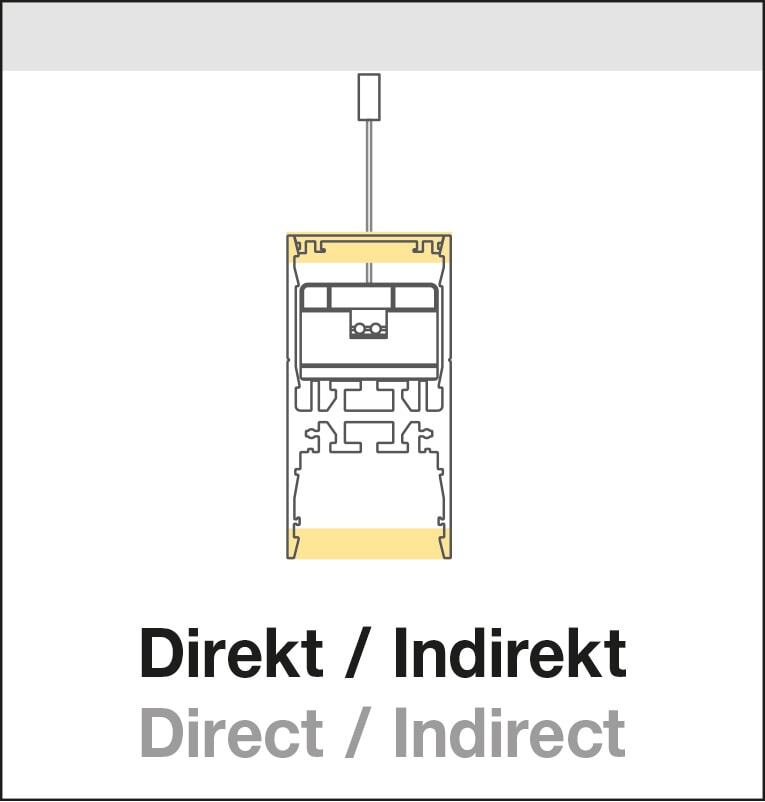

Assembly versions

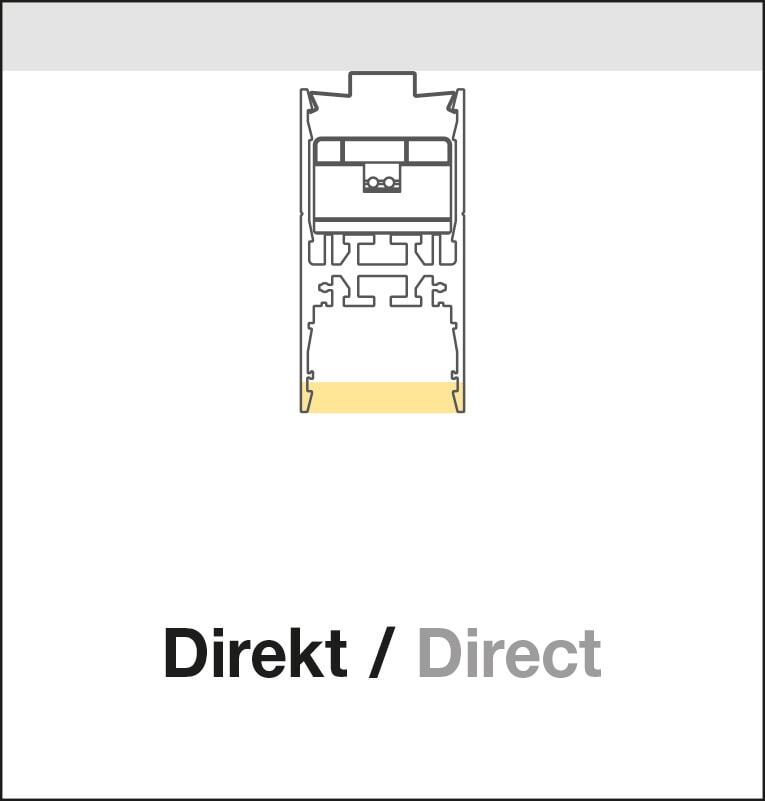

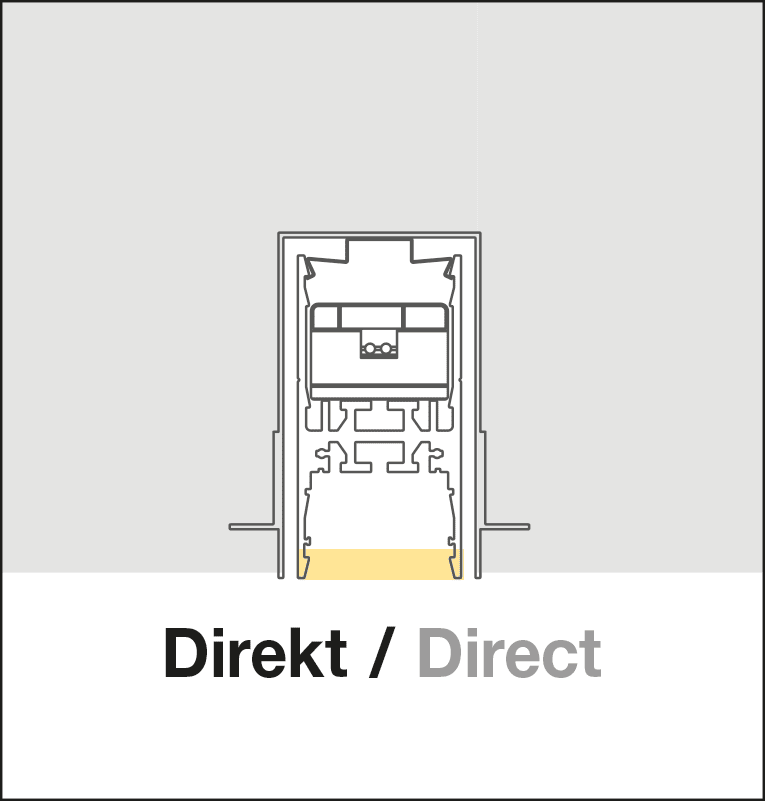

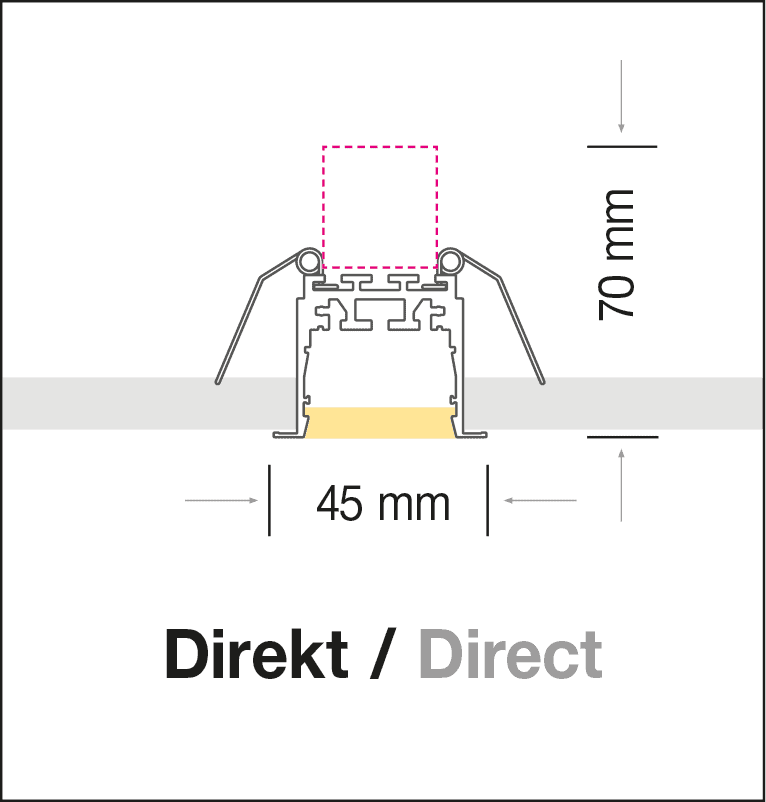

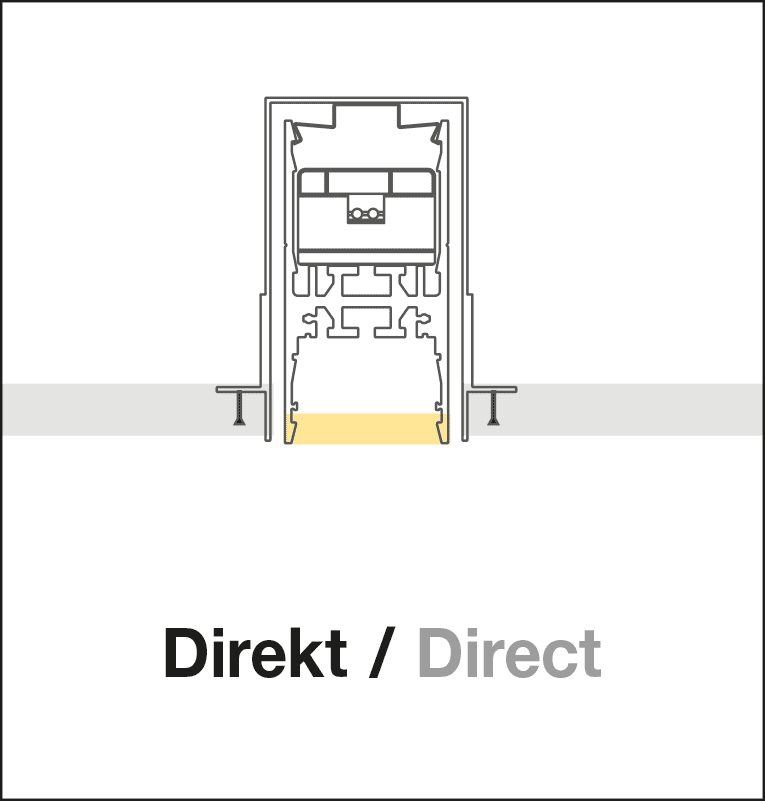

System and individual luminaires from the PALADIO series are available in 5 different mounting versions. Whether as a pendant luminaire, surface-mounted ceiling luminaire, recessed luminaire with or without edge for plasterboard ceilings or recessed luminaire in concrete ceilings, you have the right solution for every application.
