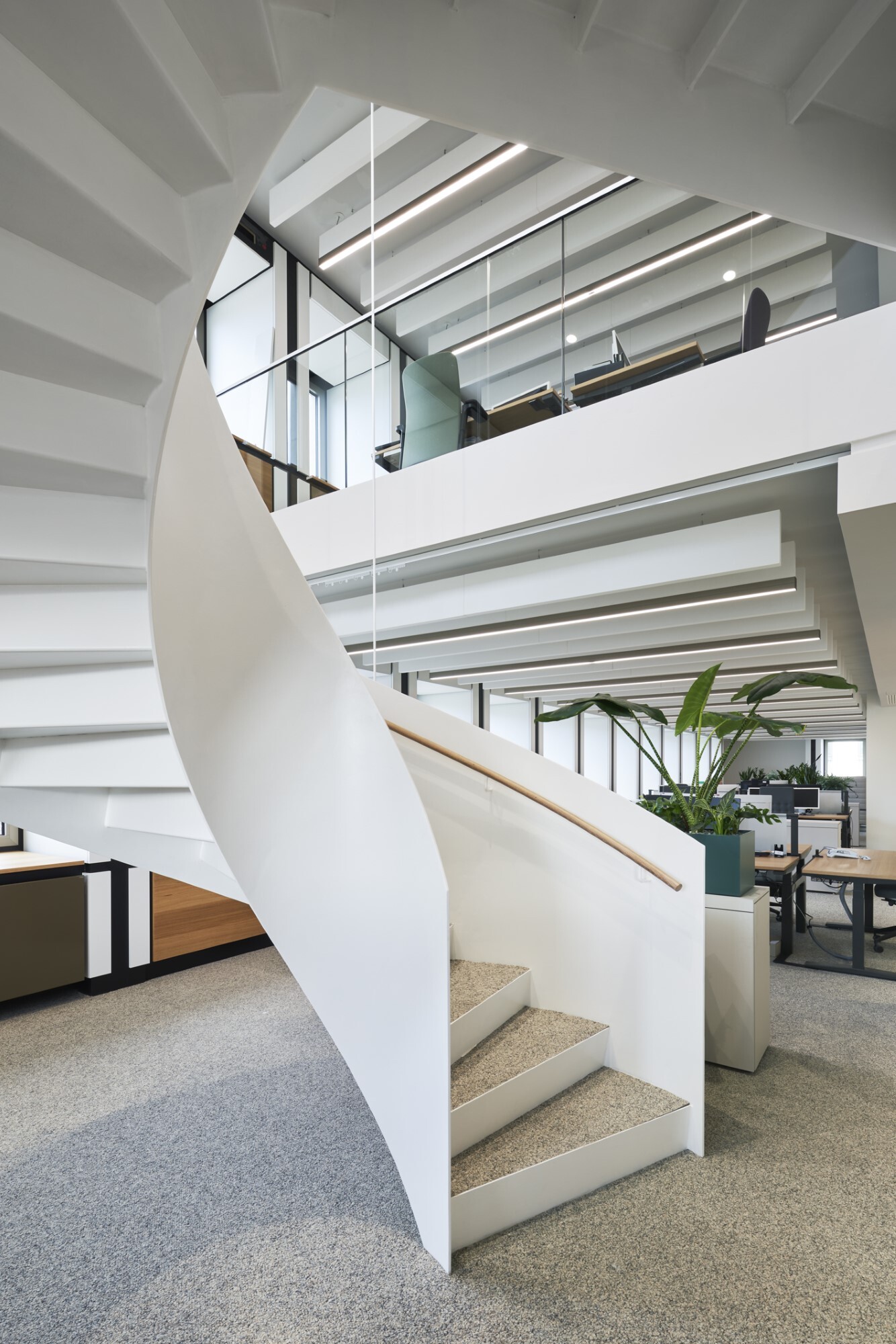

Spiral staircase with metal railing and view upwards into an open-plan office with acoustic baffles on the ceiling.

BAFFLE Luminaire


Acoustically effective and luminous


The BAFFLE LUMINAIRE is a smart all-in-one solution for light, acoustics and, on request, sensor technology. It is available in seven lengths from 1.1 m to 3.9 m. Ideal not only for open-plan offices and meeting rooms.


Light values:

This linear luminaire is equipped with a continuous microprismatic diffuser that provides symmetrical illumination with a beam angle of 65° for homogeneous illumination. A color rendering value of CRI>90 is also a matter of course here. Unless you choose the tunable white option (2700-6500 K), but even here a CRI > 80 is achieved. Dimmable (DALI-2).

The optics are housed in a brushed and anodized aluminum casing. This also houses the technology, as well as the acoustically effective element, the acoustic baffle, itself.


Acoustics:

The BAFFLE LUMINAIRE and the pure ACOUSTIC BAFFLE offer high acoustic absorption values with αw = 0.6 - 0.95.

You can choose between two acoustically effective materials

- a baffle made of mineral wool with a variety of inviting single-color fabric or fleece covers in different colors with an αw = 0.6

- and a baffle made of PET staple fiber, dyed in various elegant colors, with an αw = 0.95,

depending on the housing selected.


Sensors:

Optional: A wide range of measurements are possible with special DALI-2 sensor modules that are integrated almost invisibly into the luminaires. The collected data can be further processed by the intelligent building control system, for example, for light intensity, color temperature, air conditioning and heating.

The Baffle luminaire can be perfectly combined with the linear luminaires of the PALADIO series for other areas.

Discover other acoustic solutions from SATTLER in various forms.
